SUPREME2880

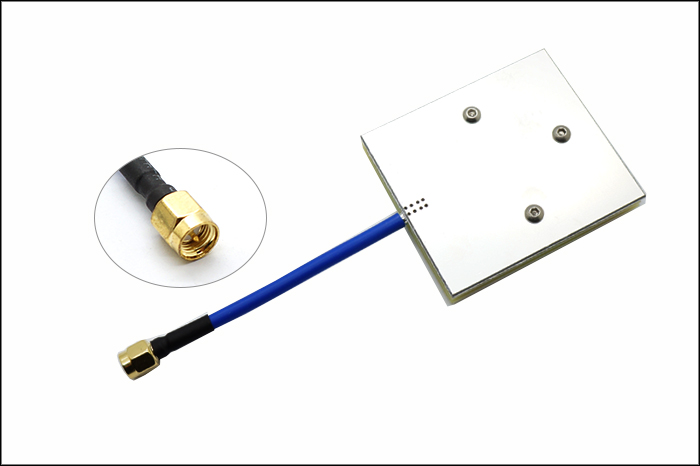

5.8GHz 14dBi Directional Patch Antenna SMA

$8.99

  • Model: 5.8GHz 14dBi SMA
  • Shipping Weight: 50g
  • 12 Units in Stock
Add to Cart:


This series of antenna are great suitable for FPV, this one operates at a 35~40 degree angle which gives excellent coverage at normal operating distances. This antenna operates in the 5645~5945MHz frequency band with a high gain and a low VSWR, is of a compact design and the antenna stem can be bent to any angle and will then stay there.

The easy-to-setup, powerful plate antenna will improve the range of your FPV which in turn will improve your FPV experience without breaking the bank.

Features:
35~40° wide operating angle
Improves range
Lightweight (32g)
Easy to install

Specification:
Frequency: 5645~5945MHz
Gain: 14dBi
VSWR: ≤1.5
Polarization: Vertical
Backward: ≤25dB
3dB Horizontal Beamwidth: 40°
3dB Vertical Beamwidth: 35°
First Side-lobe Suppresion: ≤13dB
Max Power: 50 watt
Resistance: 50 Ω
Lightning Protection: DC grounded
Connector: SMA
Dimensions: 60x55x6mm
Weight: 32g
Material: Composite electromagnetic plate


This product was added to our catalog on Tuesday 24 July, 2012.
