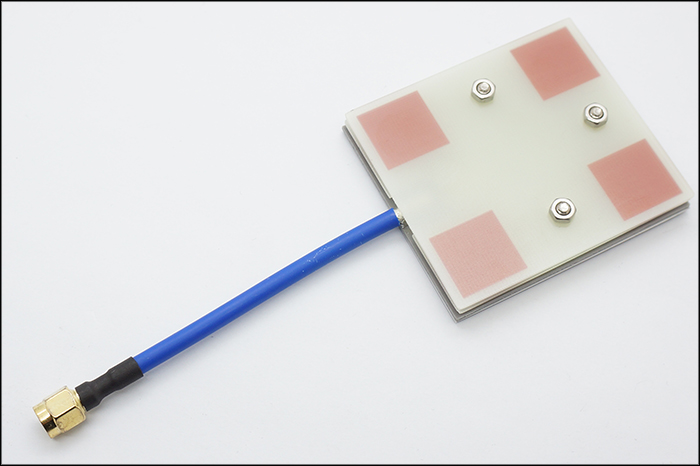

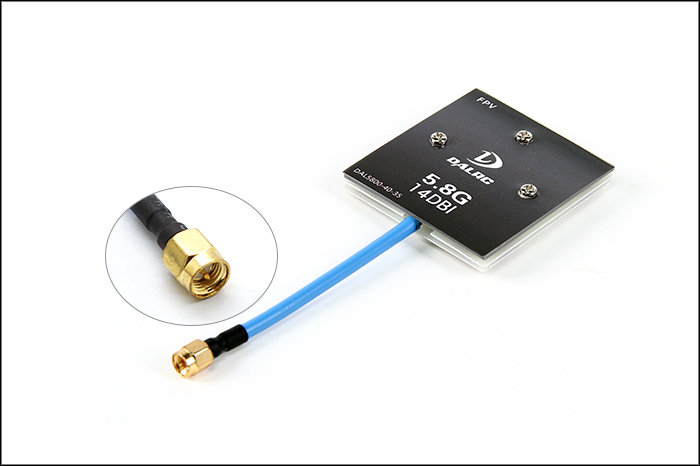

DALRC 5.8GHz 14dBi Directional Patch Antenna SMA


  • Model: DALRC 5.8GHz 14dBi SMA
  • Shipping Weight: 50g
  • 32 Units in Stock
Add to Cart:

This series of antenna are great suitable for FPV, this one operates at a 35~40 degree angle which gives excellent coverage at normal operating distances. This antenna operates in the 5645~5945MHz frequency band with a high gain and a low VSWR, is of a compact design and the antenna stem can be bent to any angle and will then stay there.

The easy-to-setup, powerful plate antenna will improve the range of your FPV which in turn will improve your FPV experience without breaking the bank.

35~40° wide operating angle
Improves range
Lightweight (32g)
Easy to install

Frequency: 5645~5945MHz
Gain: 14dBi
VSWR: ≤1.5
Polarization: Vertical
Backward: ≤25dB
3dB Horizontal Beamwidth: 40°
3dB Vertical Beamwidth: 35°
First Side-lobe Suppresion: ≤13dB
Max Power: 50 watt
Resistance: 50 Ω
Lightning Protection: DC grounded
Connector: SMA
Dimensions: 60x55x6mm
Weight: 32g
Material: Composite electromagnetic plate

This product was added to our catalog on Wednesday 04 February, 2015.
