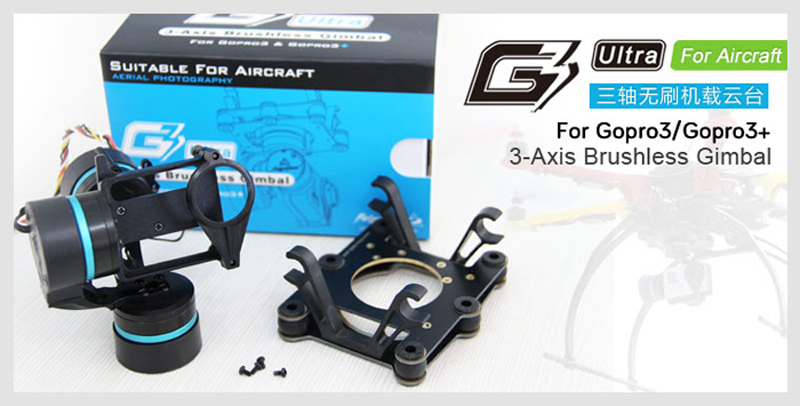

Feiyu G3 Ultra 3-Axis Airborne Brushless Gimbal(Free shipping)


  • Model: Feiyu G3 Ultra 3-Axis Airborne G
  • 1 Units in Stock
Add to Cart:

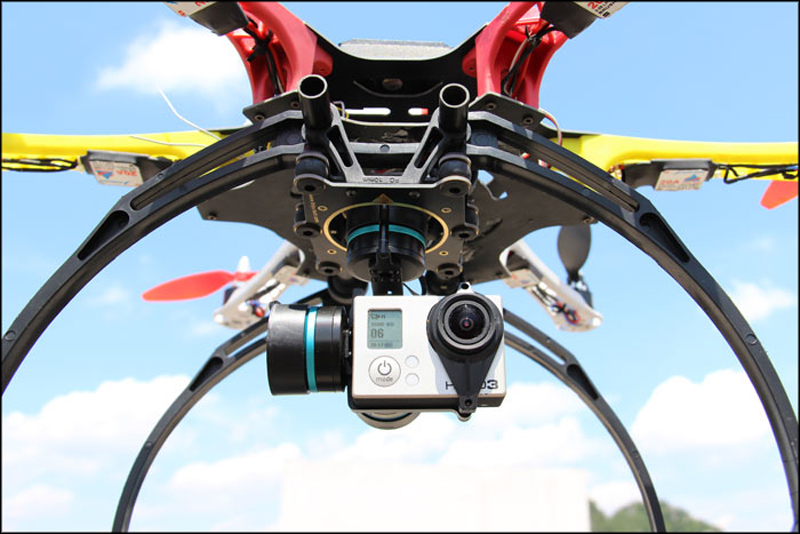

FY-G3Ultrl 3Axis Brushless Airborne Gimbal is suitable for GOPRO3,GOPRO3+ and other similar size camera. It could be installed on the fixed-wing aircraft, multi-rotor aircraft and helicopter to make aerial shooting. The operation and assembling is quite easy, it is workable solely with power.

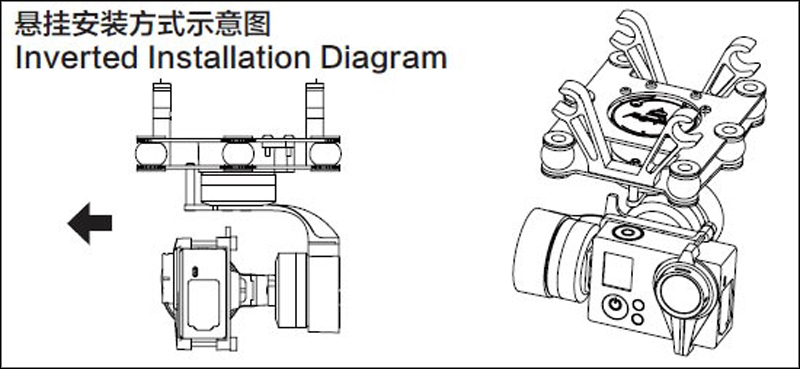

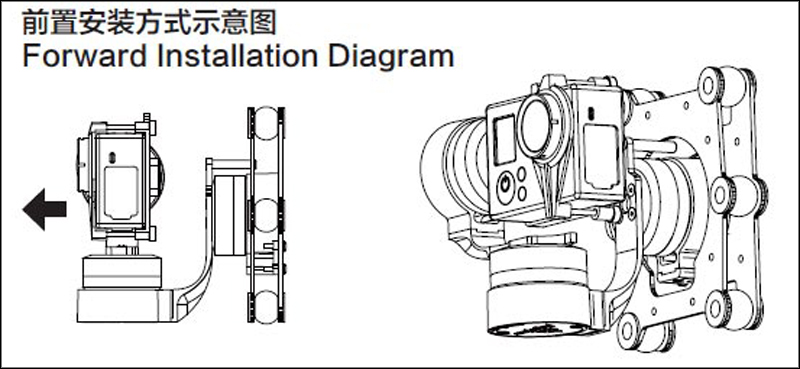

Assemble the Gimbal under the diagram. Install the camera before power supply. The existed camera mounting seat is only suitable for GOPRO3,GOPRO3+. To other size camera mounting, you need design the mounting seat by yourself or follow FY accessories.
There is no need to set and adjust the parameter. During the first start, supply the power, keep the gimbal still, after the initialization, the gimbal will keep horizontal automatically. Then it is workable.

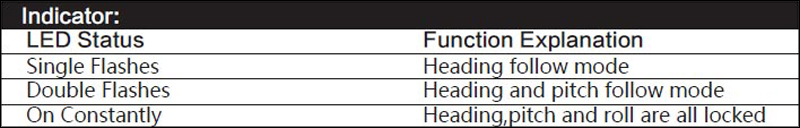

Function Instruction
-Heading Following Mode —— Camera Pitch and Roll angles remain constant, heading follows the nose position, pitch can be control by RC.
-Heading And Pitch Following Mode —— Camera Roll angle remains constant. Heading follow the nose position and Pitch follow the elevation of the aircreft.
-Locking Mode —— Heading, Pitch and Roll are all locked to point at one position.Heading and pitch can be control by RC.

FY-G3Ultra 3-Axis Brushless Gimbal For Aircraft----Ground Test: http://youtu.be/wIFOWAwBo7Y




Initialize The FY-G3Ultra Gimbal
FY-G3 Ultra Gimbal needs to be initialized when the following situation appears:
1.  After power on, the angle of pitch has a little angle difference with the horizon line.
2.  After power on, the angle of roll has a little angle difference with the horizon line.
3.  When the heading is in the till condition, the angle of heading amends frequently in a small angle .
【The method of initializing the FY-G3 Ultra Gimbal】
Keep the gimbal in the still condition, then power on , it will initialize automatically.After that the gimbal can work normally.


Current Reviews: 2
