M600 6010 Power Combo(CCW)

$333.00

  • Model: 6010 Power Combo(CCW)
  • Shipping Weight: 450g
  • 10 Units in Stock
Add to Cart:


The M600 6010 power combo is tuned propulsion system specially engineered for industrial applications and aerial imagery. Using a combination of 6010 motors, 1240X ESCs, and 2170 propellers, the M600 6010 power combo is designed to carry payloads of 1800–2500g per axis, giving it the power to carry substantial add-ons and advanced imaging equipment.

This combo includes:
- 1*6010 Motor
- 1*1240X Pro ESC
- 1*R2170 Propeller(CCW)

SPECIFICATIONS:
-Max Thrust: 5100 g/rotor (50 V, Sea Level)
-Recommended Battery: 12S LiPo
-Recommended Takeoff Weight: 1800 - 2500 g/rotor (Sea Level)

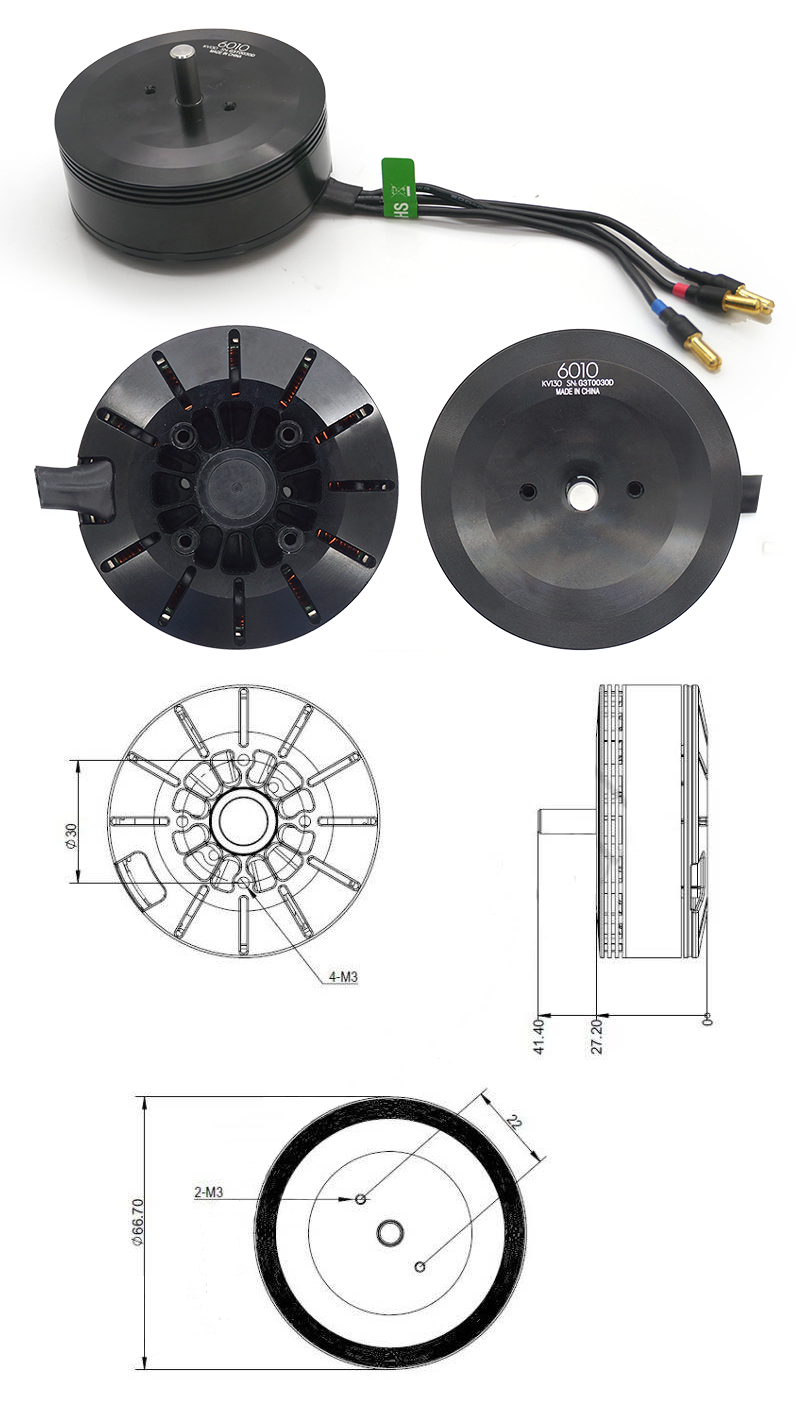

Motor
- Stator Size: 60*10mm
- KV: 130rpm/V
- Weight: 230g

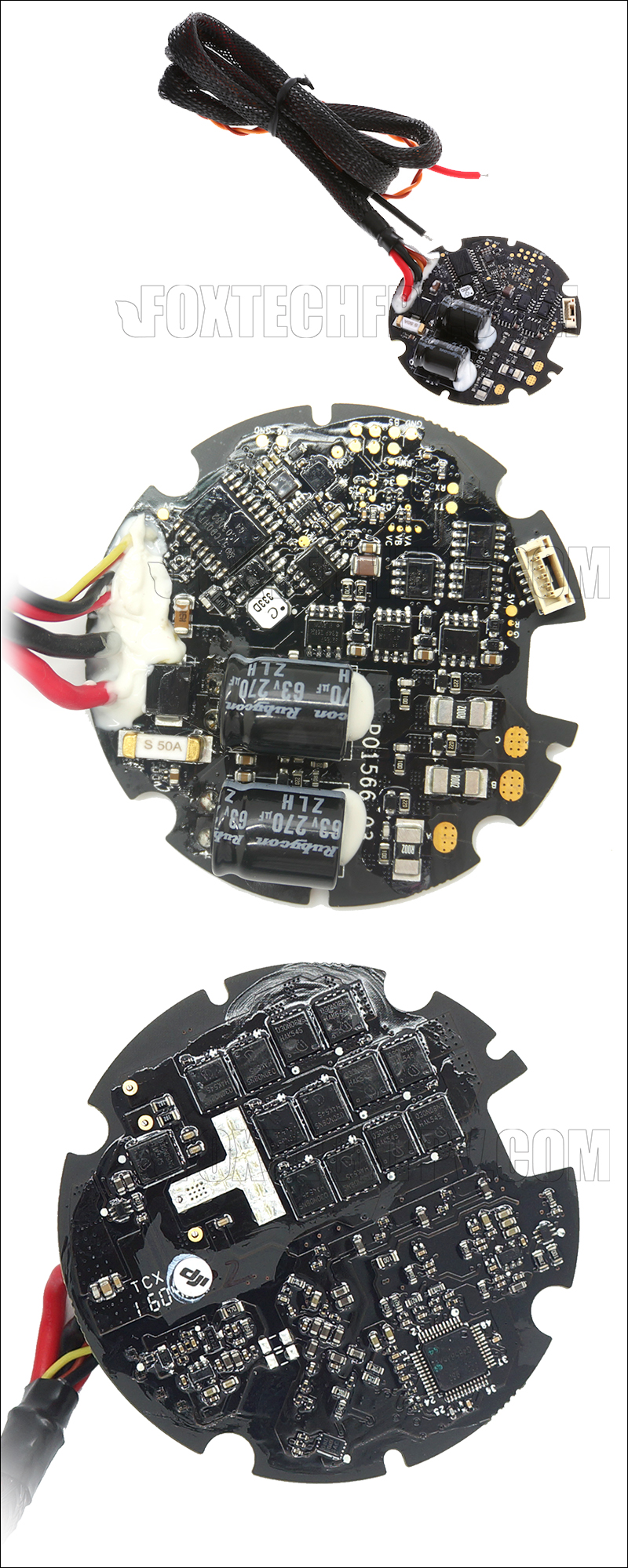

ESC
- Max Allowable Voltage: 52.2V
- Max Allowable Current (Continuous): 25A
- Max Peak Current (<3 sec): 40A
- PWM Input Signal Width: 3.3 V/5 V Compatible
- Operating Pulse Width: 1120-1920μs
- Signal Frequency: 30-450Hz
- Battery: 12S LiPo

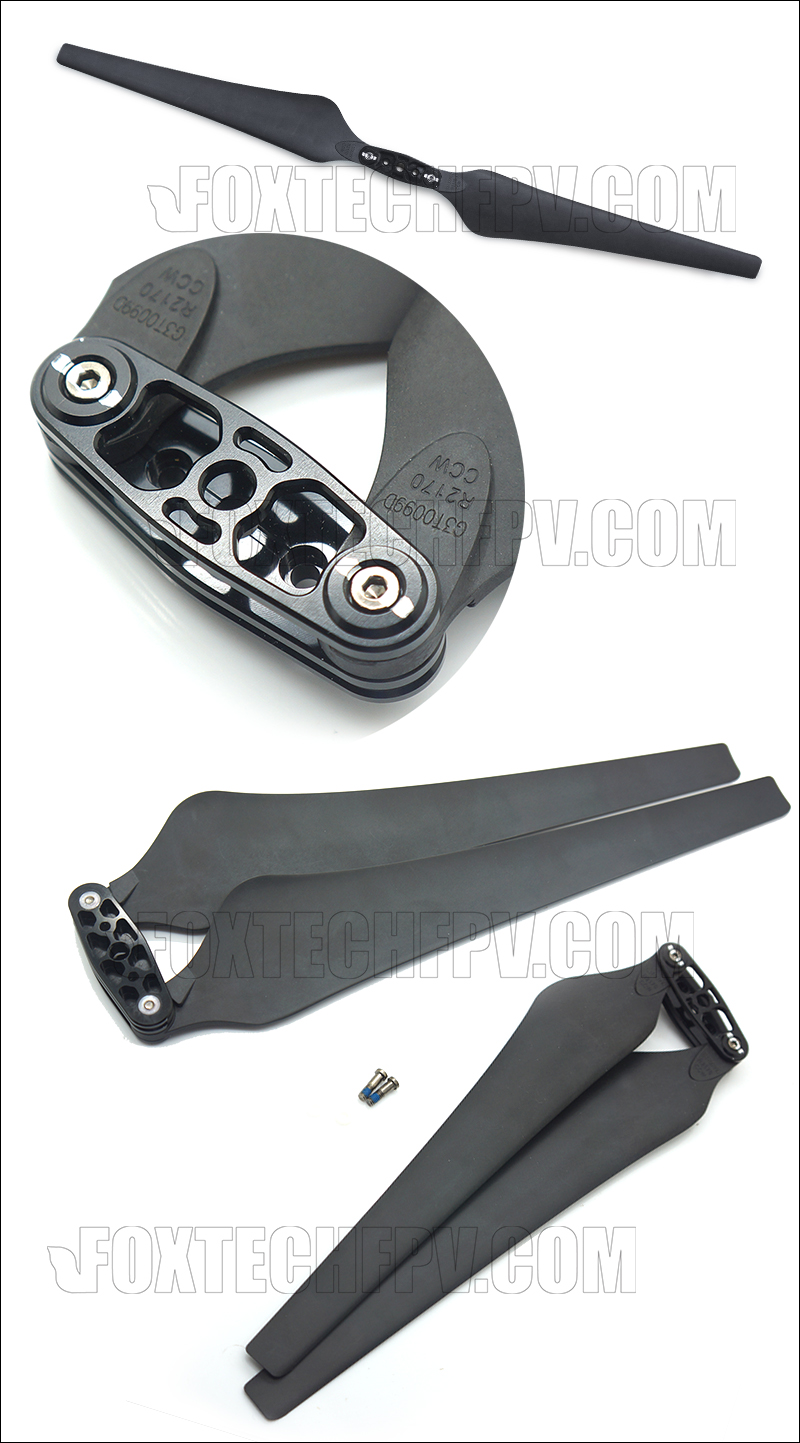

Propeller
- Diameter/Thread Pitch: 21 x 7.0 inch (533x178mm)
- Weight: 58g

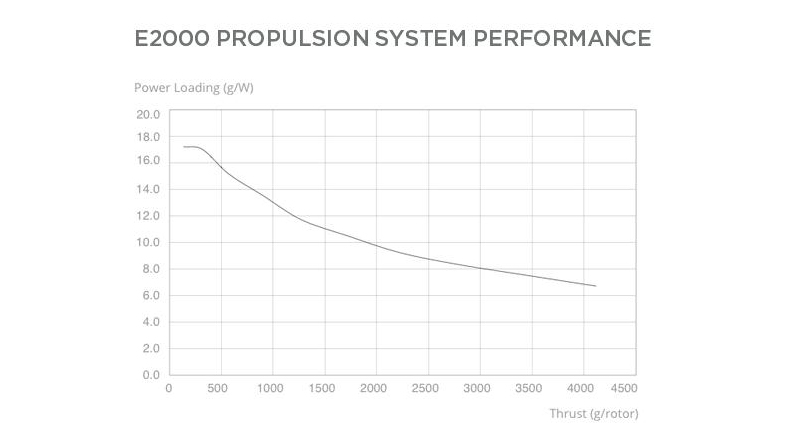

The data above was measured with an input voltage of 44.4V, at room temperature and sea level. The thrust was adjusted by the throttle.



η – Motor Efficiency, T – Thrust, I – Current, P – Input Power
The data above was measured with an input voltage of 44.4 V, at room temperature and sea level. The rotational speed was adjusted by the throttle.



The data above was measured at full throttle, at room temperature and sea level.

η – Efficiency, Τ– Torque, I – Current, P – Output Power
The data above was measured with an input voltage of 44.4 V and 100% duty cycle, at room temperature and sea level. The rotational speed was adjusted by the payload torque.
