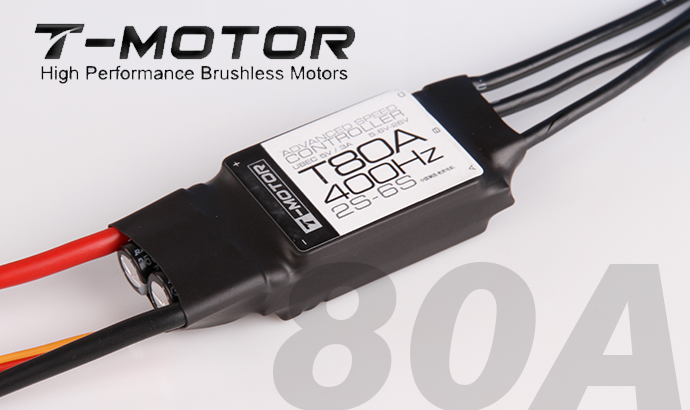

Tmotor 80A ESC

$69.99

  • Model: Tmotor 80A ESC
  • Shipping Weight: 100g
  • 22 Units in Stock
Add to Cart:




Specification:
Output:  Continuous 80A, Burst 100A up to 10 Secs.
Input Voltage:  2-6 cells lithium battery or 5-18 cells NiCd/NIMh battery.
BEC:  3A / 5V (Switch mode).
Max Speed:  210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM. (BLM: BrushLess Motor)
Size:  70mm (L) * 31mm (W) * 14mm (H).
Weight:  62g.

Features:
1.Extreme low output resistance, super current endurance.
2.Multiple protection features: Low-voltage cut-off protection / over-heat protection / throttle signal loss protection.
3.3 start modes: Normal / Soft / Super-Soft, compatible with fixed-wing aircrafts and helicopters.
4.Throttle range can be configured and is fully compatible with all transmitters currently available on market.
5.Smooth, linear and precise throttle response.
6.Our pocket-sized Program Card can be purchased separately for extremely easily programming the ESC at the field.
7.With a program card, you can activate the music playing function of the ESC, and totally there are 15 songs can be selected


This product was added to our catalog on Monday 30 June, 2014.
