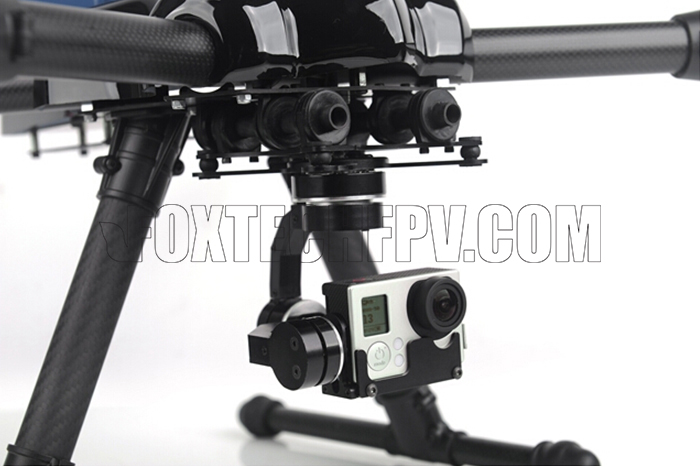

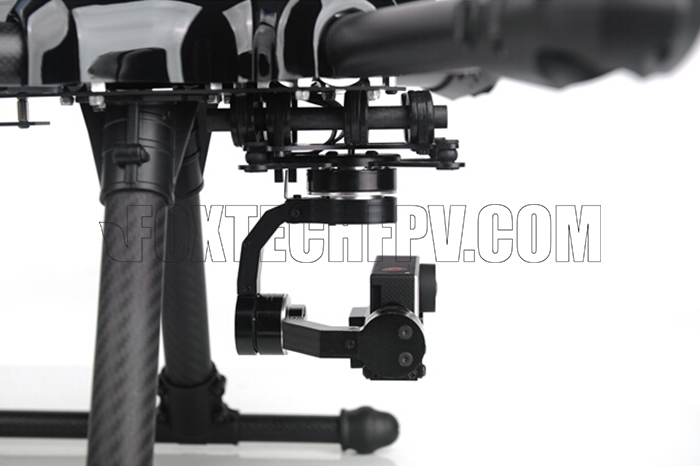

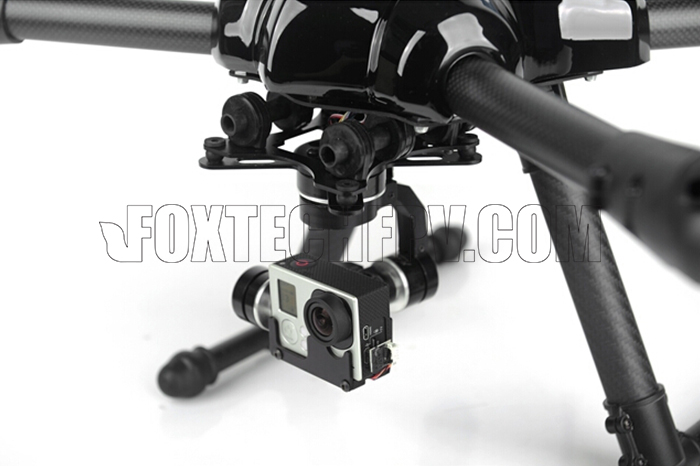

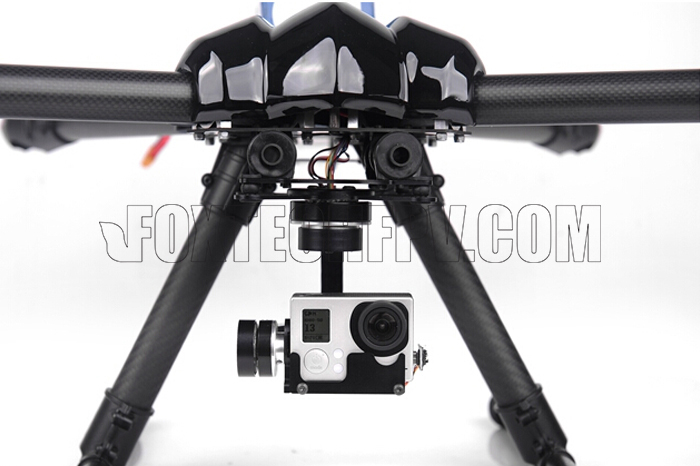

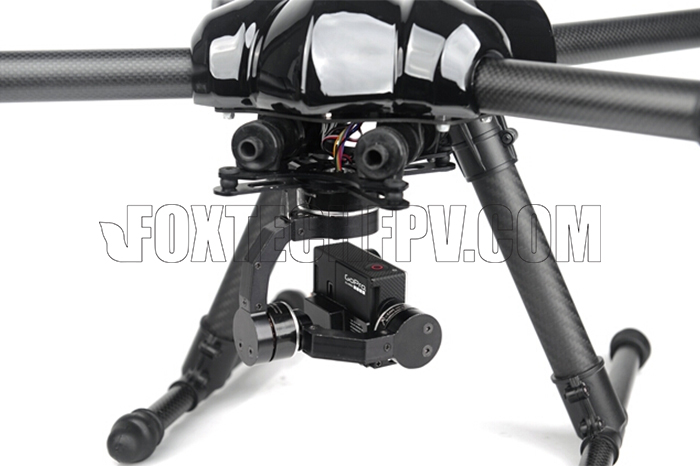

X-CAM A10-3H 3 Axis Gimbal for GOPRO3/3+/4

$278.69  $149.99
Save: 46% off

  • Model: X-CAM A10-3H 3Axis Gimbal
  • Shipping Weight: 600g
  • 2 Units in Stock
Add to Cart:


X-CAM A10-3H 3 Axis Gimbal is for Gopro series . The built-in location sensor roots off the yaw skewing deviation.Independent utility without any flight controller support and onr key back to center are the main features.

Features:
- A10-3H 3 Axis high precision gimbal system

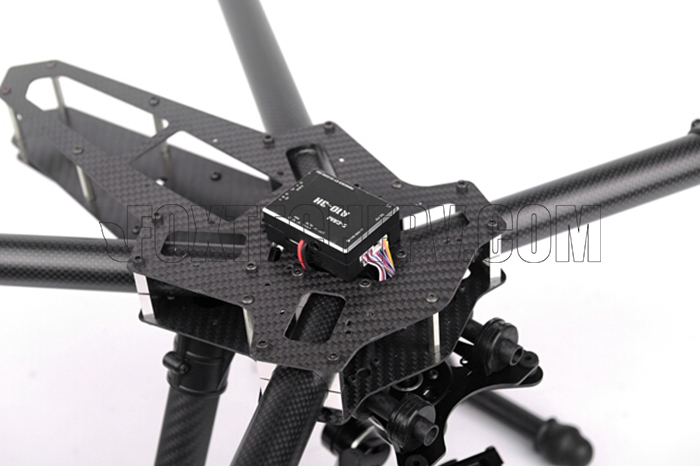

- Independant control system, no need flight controller support
- High precision altitude algorithm, brushless motor drive
- IMU feedback control
- Support firmware online upgrade
- The 3rd axis 360degree rotation

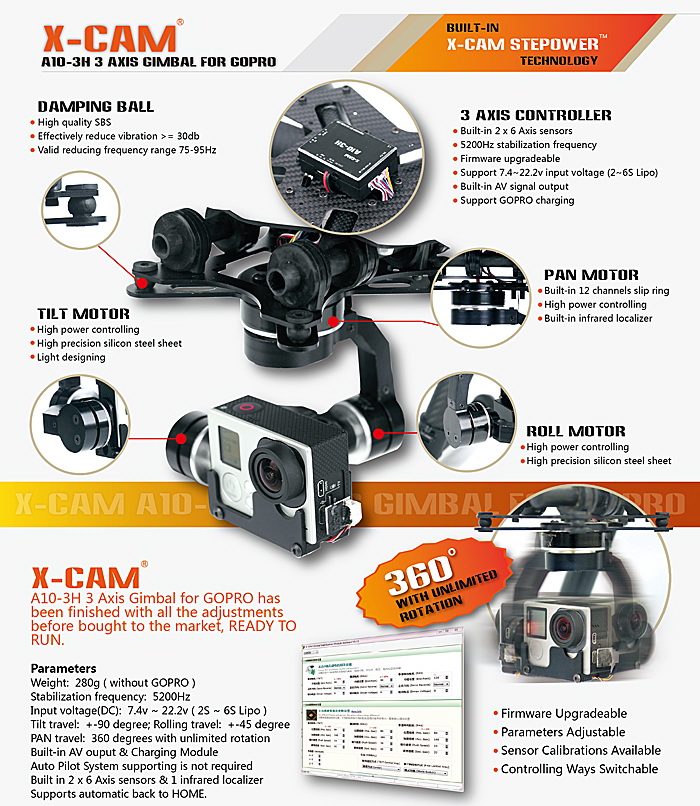

Specification:
Weight: 280g(without GOPRO)
Stability augmentation frequency: 5200Hz
Input voltage: 7.4v ~ 16.8v(2S ~ 4S Lipo)
Pitching:+/-90°;Roll:+/-45°
Yaw:360°
Built-in AV output for Gopro
Independent utility without any flight controller support
Built-in 4 sensor for accuracy and one key back to center

The S-BUS output provides full functions, all function has been defined channel number:
Channel1: ROLL Control
Channel2: Return to HOME
Channel3: TILT Control
Channel4: YAW Control
Channel5: Mode switch

2 Control modes:
Single control:just connect PPM channel for switch HEAD FOLLOWING , HEAD LOCK and AUTO BACK TO HOME, does not need to connect S-BUS channel, One receiver can be used.Dual control:Does not need to connect PPM channel, only S-BUS output channel provides full functions. But needs 2 receivers.
Notice: Under dual control mode,the A10-3H controller will provide the power to the receiver by the S-BUS.

Manual Download
The relevant firmware and upgrader refer to: http://www.x-camtech.com/html_info/Downloads-10.html

X-CAM A10-3H firmware (2014-7-31update)

X-CAM A10-3H Firmware Upgrader (2014-7-11 updated)
